Manage Keyless Entry without limits.

KAS Neo for Keyless Room Access, Common Door Access, Energy Saving, Lift Control and Door Status Monitoring. KAS Neo Locks can be managed completely remotely. Share Bluetooth keys, Pincodes or RFID cards from our brand new, cutting edge key management system KASAccess.

Why Choose KAS.Neo?

KAS Neo locks offer a comprehensive range of features at an industry-leading price point. Our products are equally suitable for personal use as they are for Hotels, Self Storage, Schools, and Corporate facilities.

Flexible

Simple, reliable access options including Pincode, RFID and Mobile Bluetooth entry

Easy Install

Our KAS Neo Handle Lock is battery-operated. Battery life 6~12 months with regular use. Wireless connectivity to our gateways make installation is as easy as can be.

Smart Features

Online Programming • Scheduled Remote Pincodes and RFIDs • Scheduled Remote Bluetooth Access • Remote Entry Logs • Lock Grouping for Common Doors • 7 day Scheduled Auto Free Passage • Water Proof Options • Tamper Alerts • Multiple Admin Roles • Reed Switch Detection

Cloud Control

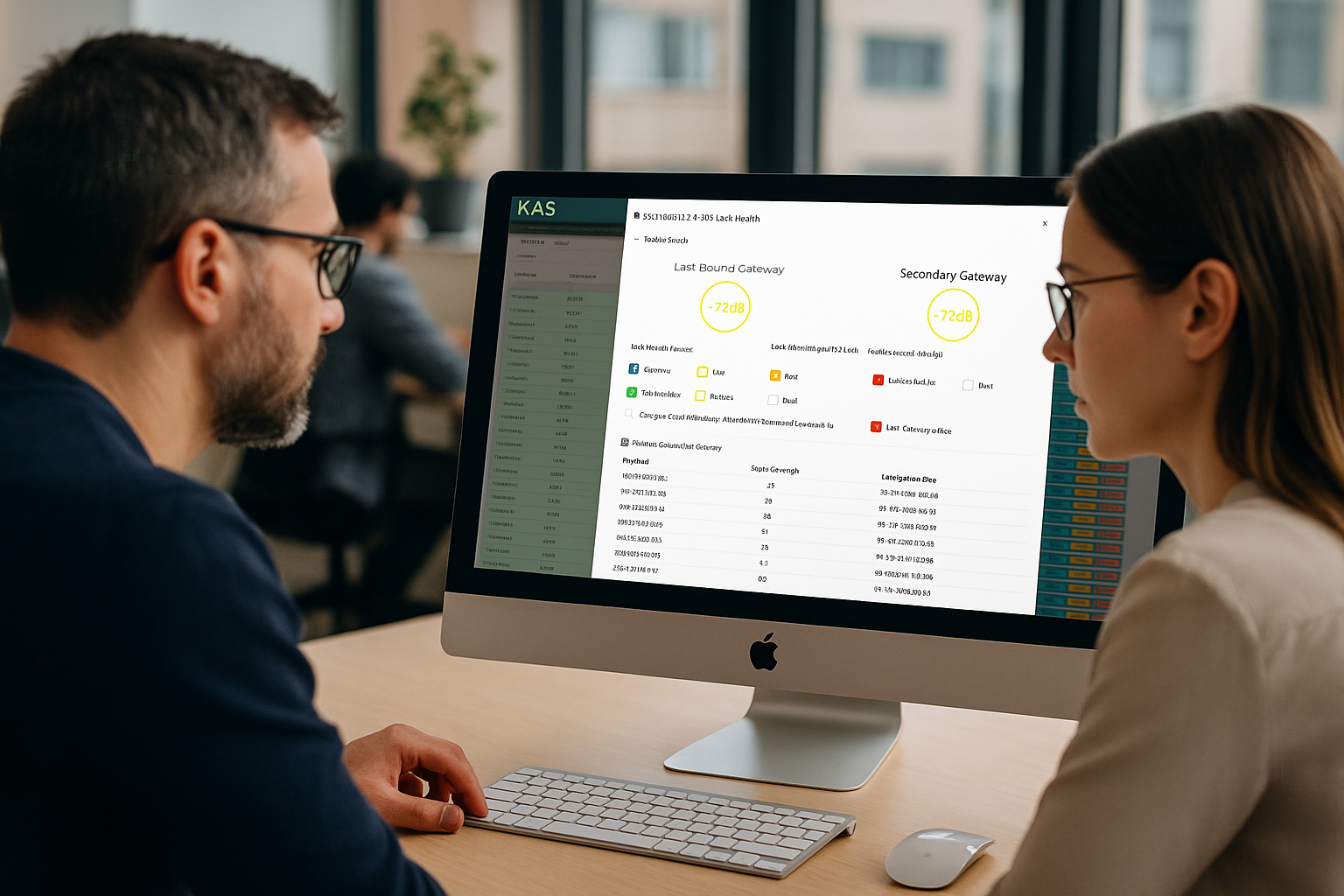

Option to use our Intuitive Web Console Gen 2, allowing for remote management of codes, RFID and BLE keys.

Compatible

Compatible with almost all electric locking hardware including Mag Locks, Electric Bolts and Strikes, Motorised Gates and Doors.

Online / Offline

Online not an option? Our locks can be easily operated without any network connectivity while retaining full functionality.

Core Product Range

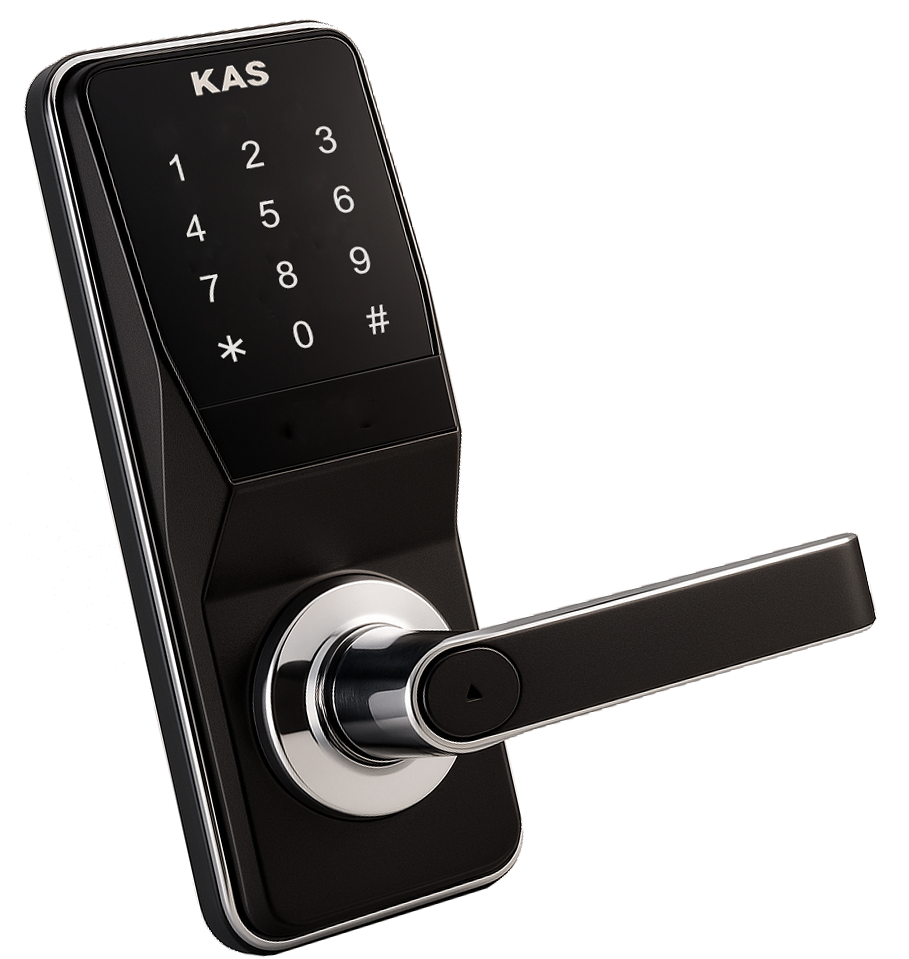

KAS Neo Lock

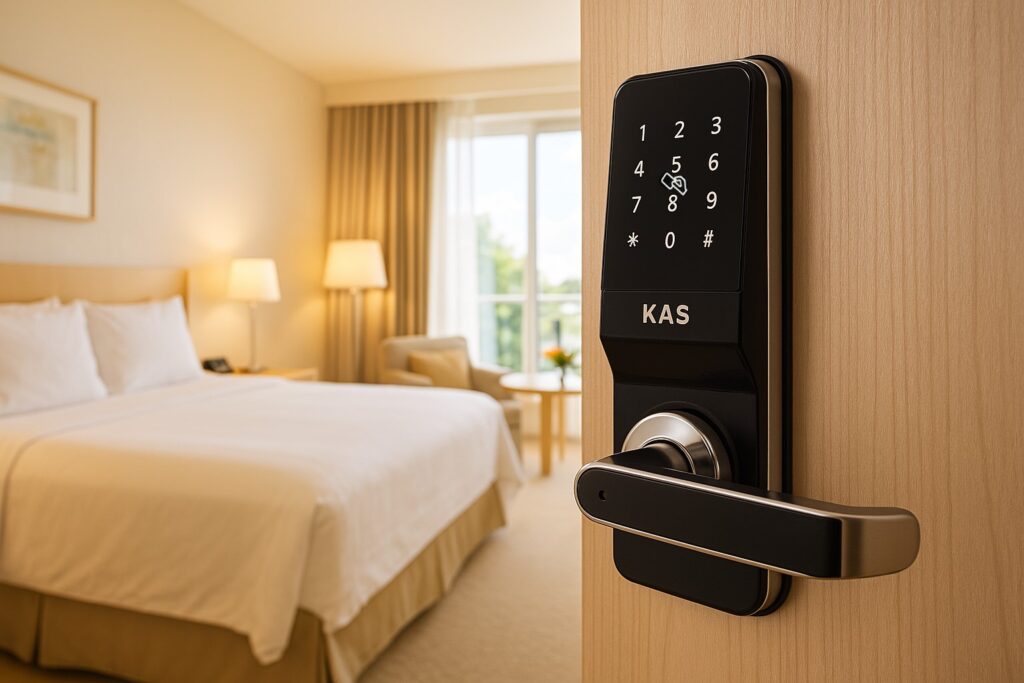

Ideal for Hotels and Apartment Buildings. Guest Room Entry.

  • Battery Operated
  • ~6-12 months battery life.
  • RFID / Fob Card, Pincode and Bluetooth Entry.
  • Physical backup key.
  • Emergency battery backup connector.
  • Can be used on guest room or common door*.
  • Large, clear keypad display.
  • Splash Resistant. Can be installed under eaves.
  • 2 Year Warranty.

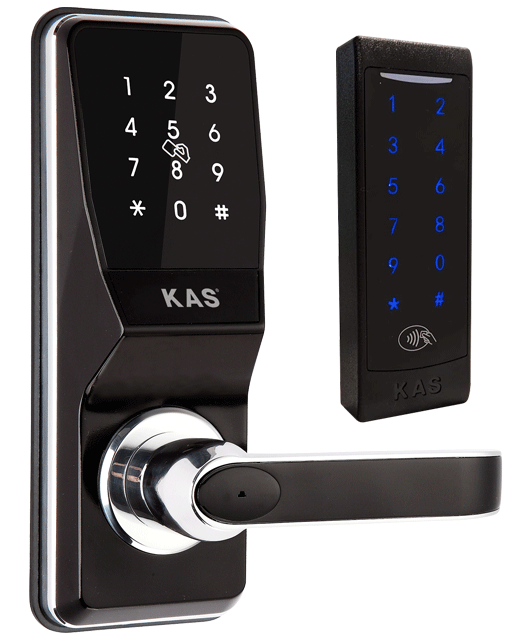

KAS Neo ACR2 (Access Card Reader)

Ideal for Hotels and Apartment Buildings. High Traffic Common Doors.

  • 12-24v wired Access Control Reader.
  • RFID / Fob Card, Pincode and Bluetooth Entry.
  • Can be used on guest room or common door.
  • Highly Secure Solid State NO/NC Relays.
  • Tamper Switch.
  • Switch Monitor (RS/Dry Contact etc.)
  • Maintenance friendly connector
  • Must be used in combination with electric locking hardware such as motorised openers, electric strike, electric bolt, maglock etc.
  • Water proof, resin encased electronics. Can be installed open to elements.
  • Weigand 37 for optional external keypad?
  • 2 Year Warranty

3x Key Management Options

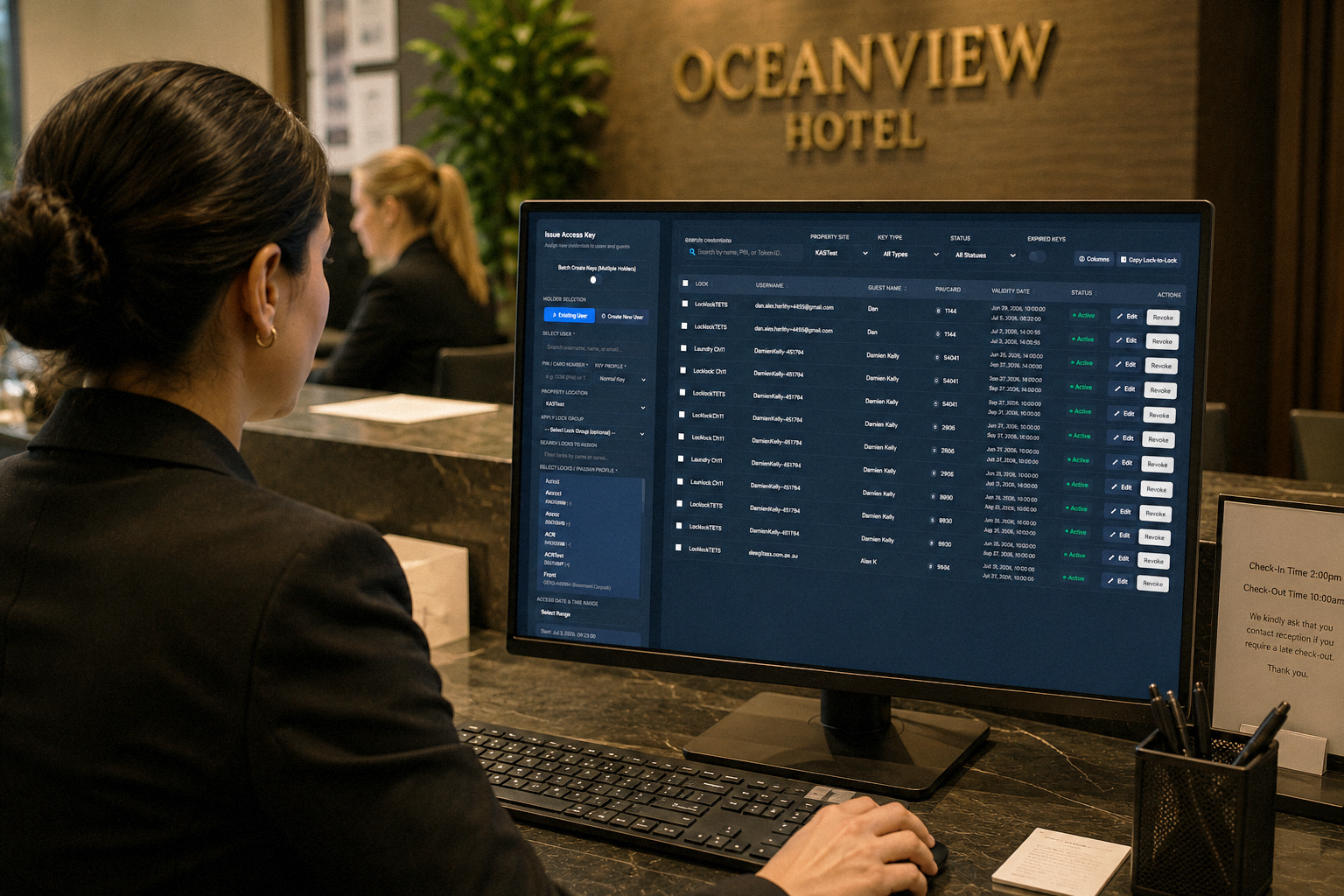

KASAccess

Cloud Based, remote and in-house management of Keys

Lock-S

PC Software for in-house management of keys

Stand alone

Basic management of keys via lock face keypad.

  • Flexible enterprise solution, suitable for hotels, apartment buildings, education, government facilities, gyms etc.
  • Cloud based remote key management.
  • Lock Grouping – Set one pin to many locks.(Useful for master keys and common Doors).
  • RFID / Pin and Bluetooth Keys with valid periods.
  • Multiple admin user levels
  • Scheduled free passage.
  • Remote event records.
  • API available for RMS Integration and 3rd party control.
  • Event Map to generate notifications and alarms based on user-defined conditions. Ie window open + door open + motion detected = Trigger Alarm.
  • Compatible with Neo Lock, Neo ACR, ACR2, KAS Smart PIR Energy Saver and KAS Wireless Reed Switches.
  • Basic RFID access solution, suitable for locally managed hotels, gyms and apartments.
  • PC key management software.
  • No Internet access is required for access cards and FOB keys.
  • Valid key periods.
  • Scheduled free passage.
  • Master / Staff / Guest keys.
  • Lock entry records
  • Compatible with Neo Lock and Neo ACR
  • Basic solution, suitable for single locks, home entry, low volume AirBNB etc.
  • Manual entry on RFID / Fob pass and pin codes direct to the face of the lock.
  • Auto-generate 8 digit pin codes with valid period.
  • Custom 4 Digit pin codes (no valid period).
  • Bluetooth Entry.

*KASAccess requires KAS S1 Gateway(s) to be placed within 15m line of sight to each lock. S1 Gateways require an Internet connection via POE or Wifi.
**Lock-S PC Software for local key management functionality only.

Parts Required

KASAccess (Cloud).

  • KAS Neo Battery Handle Lock or …
    KAS Neo ACR with Electric Strike / Electric Bolt / Magnetic Lock to secure entry.
  • KAS S1 Gateway (All Locks must be within 15m line-of-sight to a gateway) minimum 1x S1 Gateway required.
  • KASAccess subscription.
  • Optional RFID number reader.
  • Access cards / fobs with printed RFID number.
  • ***KAS Neo ACR requires a 12-24v power supply (not included).

Lock-S (Offline).

  • KAS Neo Battery Handle Lock or …
    KAS Neo ACR with Electric Strike / Electric Bolt / Magnetic Lock to secure entry.
  • Windows PC with Lock-S Software License.
  • RFID Card reader / writer.
  • KAS Lock-S encoded access cards / fobs.
  • ***KAS Neo ACR requires a 12-24v power supply (not included).

Stand-alone (Offline).

  • KAS Neo Battery Handle Lock or …
    KAS Neo ACR with Electric Strike / Electric Bolt / Magnetic Lock to secure entry.
  • ***KAS Neo ACR requires a 12-24v power supply (not included).

Parts of our System Explained.

Glossary:

  • KASAccess / Lock-S: Software for managing Keys to locks.
  • KAS Neo Handle Lock: Battery powered lock, ideal for guest room entry.
  • KAS Neo ACR: Access controller with keypad. Wired 12-24v. Requires additional electric latch / magnetic lock, motorised door etc.
  • Neo LCR: Lift controller with keypad and relay module to allow access to individual lift floors.
  • S1 Gateway: Wirelessly transmits key data to Neo locks, ACRs and LCRs.
  • Smart PIR Energy Saver: Uses smart motion detection combined with algorithm to detect when room is vacant and automatically turn off power. Can also be used as a security device.
  • Wired Door and Window Switches: Can be connected to ACR or PIR to monitor door / window open / close.
  • Wireless Door and Window Switches: To be used in conjunction with PIR Smart Energy Saver to monitor door / window open / close.
  • API: Application Programming Interface for controlling and Integrating our Locks with 3rd party software.
